welded roof mesh
Galvanized Welded Wire Mesh Material or Surface Treatment:
Hot-dipped galvanization welded wire mesh
Electro galvanization welded wire mesh
Galvanized Welded Wire Mesh Characteristic:
•Hot dipped galvanized after welding
Welding with hot dipped galvanized iron wire(Hot dipped galvanized before welded.)
•Electric galvanized after welding
Welding with electric galvanized iron wire (Electro galvanized before welded.)
•Welded Mesh uniformity ,welding point smooth and firm.
Galvanized Welded Wire Mesh Applications:
Used in the industry ,agriculture ,construction,transport and mining .Such as machine protection cover ,ranch fender garden fender ,window protection fender ,passage fender ,fowl cage ,egg basket and foodstuffs basket.Galvanized Welded Wire Mesh Specifications:
Specifications list of Welded Wire Mesh | ||
Opening |
Wire Diameter (BWG) | |
In inch | In metric unit (MM) | |
1/4”x1/4” | 6.4MMx6.4MM | 22 23 24 |
3/8”x3/8” | 10.6MMX10.6MM | 19 20 21 22 23 |
1/2”x1/2” | 12.7MMX12.7MM | 16 17 18 19 20 21 22 23 |
5/8”x5/8” | 16MMX16MM | 18 19 20 21 |
3/4”x3/4” | 19.1X19.1MM | 16 17 18 19 20 21 |
1”x1/2” | 25.4MMX12.7MM | 16 17 18 19 20 21 |
1-1/2”x1-1/2” | 38MMX38MM | 14 15 16 17 18 19 |
1”x2” | 25.4MMX50.8MM | 14 15 16 |
2”x2” | 50.8MMX50.8MM | 12 13 14 15 16 |
Technical Note: 1> Standard roll length: 30m ,width 0.5m-1.8m 2> Specifical size available at requrest 3> Packing : in waterproof paper inside and outside shrink plastic (Customer packing available at request |
Welded Wire Mesh Roll | ||||
Specifications in British System Width Length:3’x100’ Width Length:4’x100’ | Packing Dia.MM | |||
Mesh | BWG | Mesh | Gauge | |
1’’x2’’ | 14 | 25.4mmx50.8mm | 2.10mm | 390 |
1’’x2’’ | 15 | 25.4mmx50.8mm | 1.82mm | 360 |
1’’x2’’ | 16 | 25.4mmx50.8mm | 1.65mm | 320 |
1’’x2’’ | 17 | 25.4mmx50.8mm | 1.47mm | 310 |
1”x1’’ | 14 | 25.4mmx25.mm | 2.1mm | 400 |
1”x1’’ | 15 | 25.4mmx25.mm | 1.82mm | 370 |
1”x1’’ | 16 | 25.4mmx25.mm | 1.65mm | 330 |
1”x1’’ | 17 | 25.4mmx25.mm | 1.47mm | 320 |
1”x1’’ | 18 | 25.4mmx25.mm | 1.24mm | 280 |
1”x1’’ | 19 | 25.4mmx25.mm | 1.06mm | 255 |
3/4”x3/4” | 16 | 19.05mmx19.05mm | 1.65mm | 350 |
3/4”x3/4” | 17 | 19.05mmx19.05mm | 1.47mm | 330 |
3/4”x3/4” | 18 | 19.05mmx19.05mm | 1.24mm | 290 |
3/4”x3/4” | 19 | 19.05mmx19.05mm | 1.06mm | 260 |
3/4”x3/4” | 20 | 19.05mmx19.05mm | 0.88mm | 240 |
1/2”x1’’ | 17 | 12.7mmx25.4mm | 1.47mm | 335 |
1/2”x1” | 18 | 12.7mmx25.4mm | 1.24mm | 300 |
1/2”x1” | 19 | 12.7mmx25.4mm | 1.06mm | 265 |
1/2”x1/2” | 18 | 12.7mmx12.7mm | 1.24mm | 300 |
1/2”x1/2” | 19 | 12.7mmx12.7mm | 1.06mm | 275 |
1/2”x1/2” | 20 | 12.7mmx12.7mm | 0.88mm | 250 |
1/2”x1/2” | 21 | 12.7mmx12.7mm | 0.81mm | 230 |
1/2”x1/2” | 22 | 12.7mmx12.7mm | 0.71mm | 215 |
1/4”x1/4” | 23 | 6.35mmx6.35mm | 0.63mm | 215 |
3/8”x3/8 | 21 | 9.35x9.35mm | 0.81mm | 250 |

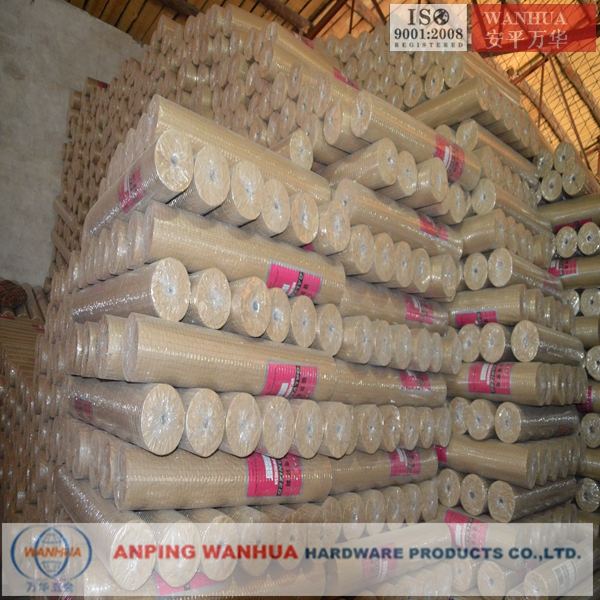

Welded Wire Mesh Roll Packing Terms and Warehouse

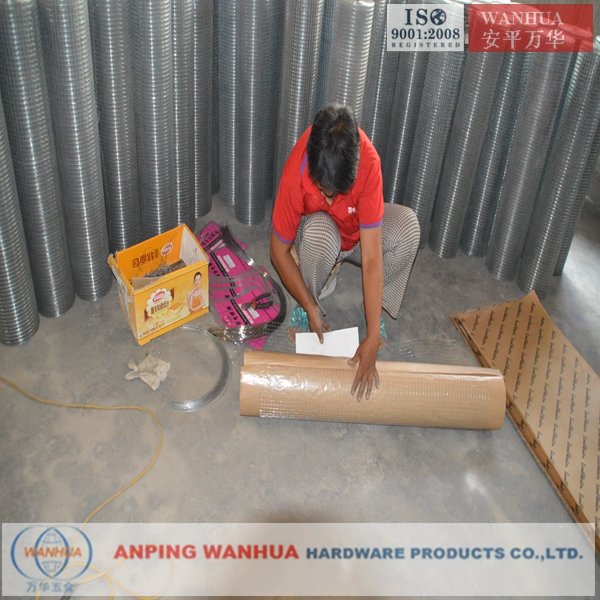

Inside waterproof paper ,outside plastic bags
Inside waterproof paper outside plastic shrink
Pallet packing
Special requirement for the packing terms, we can do according to the buyer’s requirement.
