the Specification of PVC Coated Welded Wire Mesh
Add Time:2014/9/4Clicks:

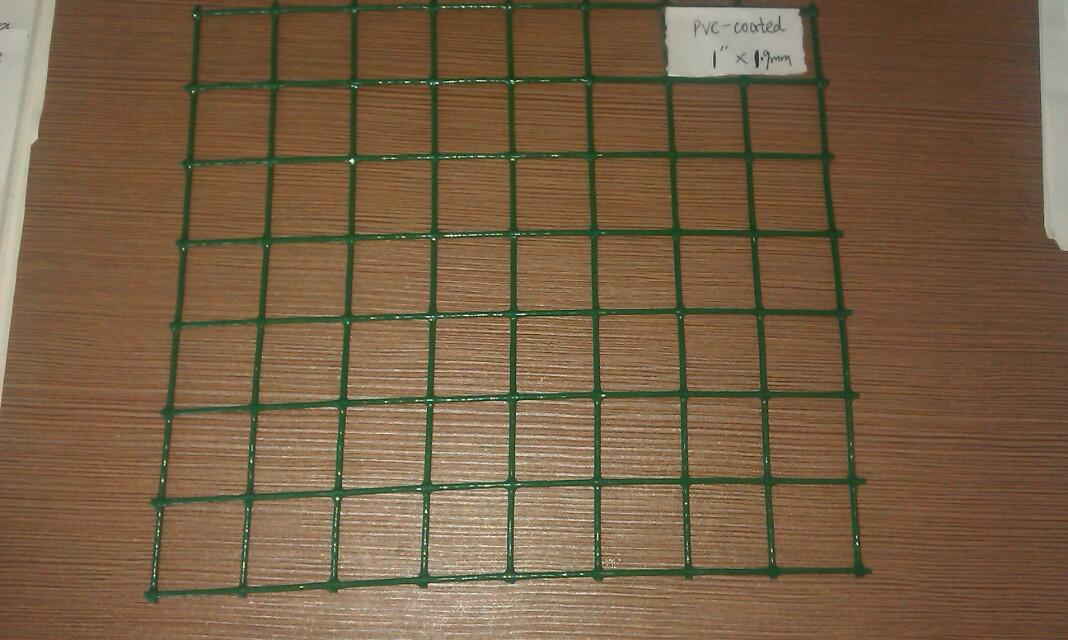

PVC Coated Welded Wire Mesh Material:
By choosing best PVC powder and with our advanced automatic PVC coating line,the plastic coating has strong adhesiveness and bright luster with excellent corrosive and alkali resistance.Therefore this advanced coating creates a longer service life.
PVC Coated Welded Wire Mesh Specifications
PVC Coated Welded Wire Mesh | ||||
Opening | Wire dia(mm) | Width (inch) | Wire dia before coated | Wire dia after coated |
1”x1” | 0.9-2.5 | 2-7 | 0.9 | 1.3 |
2”x2” | 0.9-2.5 | 2-7 | 1.0 | 1.4 |
2”x2” | 1-3.5 | 2-7 | 1.2 | 1.6 |
2”x2” | 1-3.5 | 2-7 | 1.4 | 1.8 |
2”x3” | 1-3.5 | 2-7 | 2.0 | 2.4 |
2”x4” | 1-3.5 | 2-7 | 2.2 | 2.6 |
3”x1” | 1-3.5 | 2-7 | 2.4 | 2.8 |
3”x2” | 1-3.5 | 2-7 | 2.0 | 2.5 |
3”x3” | 1-3.5 | 2-7.5 | 2.5 | 3.0 |
4”x1” | 1-3.5 | 2-7 | 2.8 | 3.3 |
4”x2” | 1-3.5 | 2-7 | 3.0 | 3.5 |
4”x3” | 1-3.5 | 2-7 | 3.5 | 4.0 |
5”x5” | 1-3.5 | 2-7 | 3.5 | 4.0 |
PVC COATED WELDED WIRE MESH | |||
Wire Diameter | Mesh | Width x Length | Note |

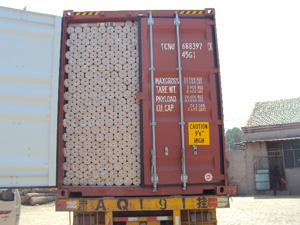

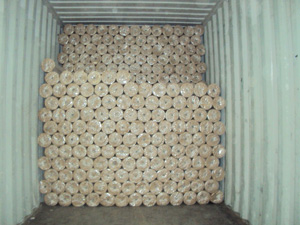

2.0MM/2.6MM | 4’’X2” | 3’x100’ | 1.Guage:BWG12 to 24 2.Mesh:1/4”,3/8”,5/8”,1/2”,3/4”,1’’to 6” 3.Width: 2’to 7’ 4.Length:10’to 300’ 5.Packing:waterproof paper inside,and then plastic film 6.PVC colour;Green,Black,Yellow,etc |
1.9MM/2.5MM | 3”X2” | 3’x100’ | |
1.9MM/2.5MM | 2”X2” | 3’x100’ | |
1.9MM/2.5MM | 2”X1” | 3’x100’ | |
1.6MM/2.1MM | 3”x2”| | 3’x100’ | |
0.8MM/1.1MM | 1/2”x1/2” | 3’x100’ | |
0.6MM/0.7MM | 3/4”x3/4” | 3’x100’ | |
 |  |
 |  |
 |  |
