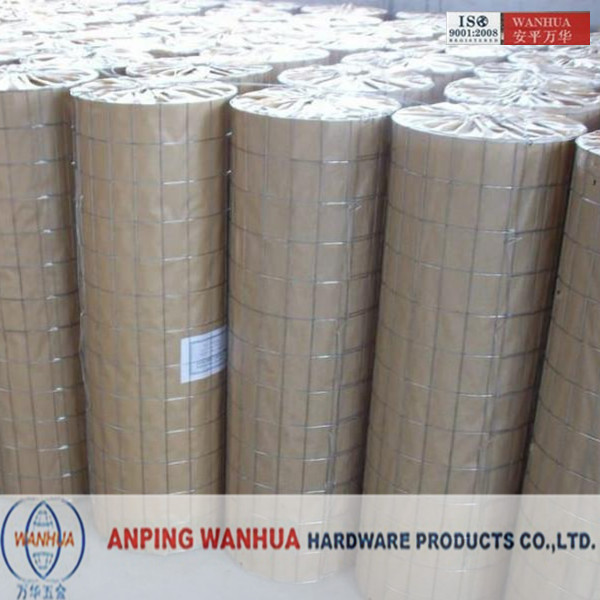

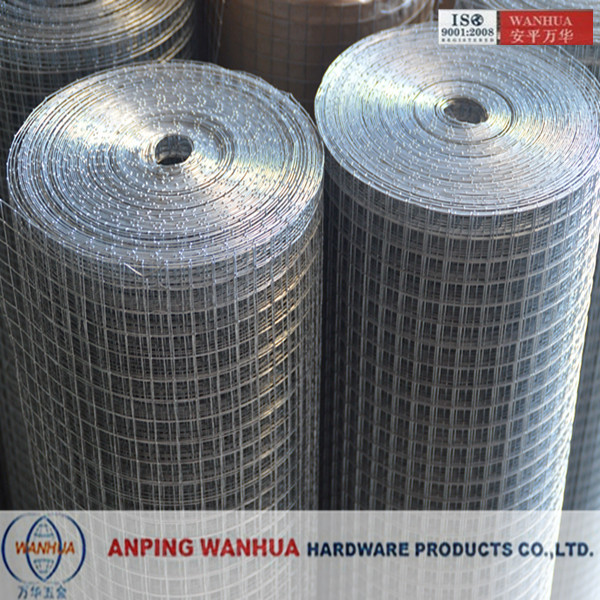

2015 Hot sale electro-galvanized welded wire mesh anping factory
Add Time:2015/10/14Clicks:
1)Use:used widly in industry,agriculture,building,transportation,mine field,lawn,cultivation, etc. profession sguard,decorate,machine protection.
2)Material:high quality low carbon steel wire.stainless steel wire.
3)Weaving Method:including galvanizing after welding,galvanizing before welding.
4)Characteristics:have the strong characteristic of antisepsis and controdicting oxygenation.
Specification List of Welded Wire Mesh: | ||
Opening | Wire Diameter<BWG> | |
In inch | In metric unit(mm) | |
1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
Technical Note: | ||
